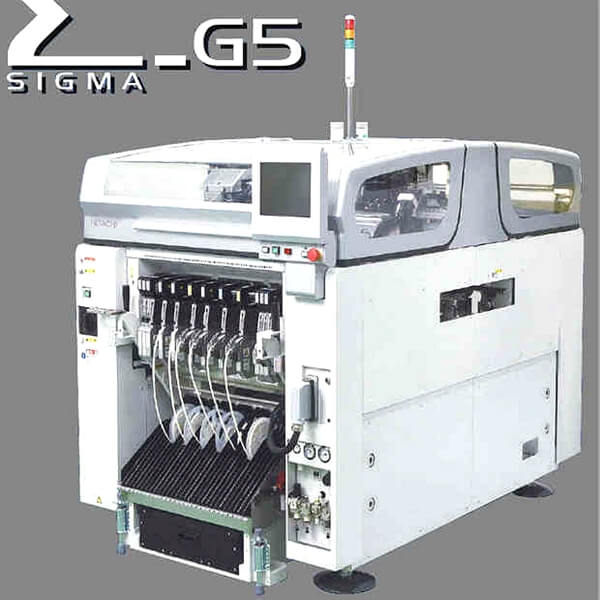

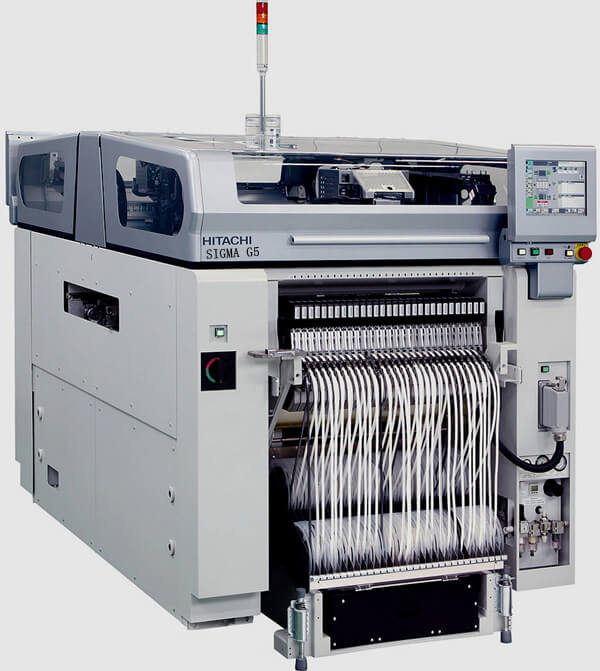

Hitachi SIGMA G5 Pick and Place Machine
The SMP Electronics business unit located in Orlando, FL maintains an ultra-modern facility
for the manufacture of DIS Ignition Modules, Solid State Relays, Remote Start Relays,
MAP sensors and other automotive electronics parts. These products are manufactured
for sales and distribution directly by SMP sales force, to the original equipment,
original equipment service and traditional market channels. At this SMP electronics facility,
highly automated and flexible production lines and advanced processes can produce
over 110 different modules and up to three-quarters of a million modules annually
Maximize space this high speed pick & Place features dual side operation, doubling the feeder
capacity of our SIGMA-G4. SIGMA comes packed with standard features and options
to meet all your needs.
Compact Premium Modular Mounters SIGMA-G4 and SIGMA-G5 achieve high productivity
and high quality with functions such as direct drive head, overdrive motion detection apparatus,
and linear motor driven XY beams. SIGMA-G4 and SIGMA-G5 allow you to quickly change the
head units and tray units so that you can flexibly handle changes of component types.
These mounters offer significantly improved maintenance such as easy cutter unit detachment.Concept:
LED lamp shade, and is the only ultra-fast, turret structure mounted transparent lamp placement machine!Hitachi SIGMA G5 parameters
Applicable components Length and width High-speed head 0.4 × 0.2mm ~ 44 × 44mm
Universal head 1.0 × 0.5 ~ 55 × 55mm 150 × 26mmThickness of high-speed head 12.7mm universal head 25.4mm
Hitachi Σ series direct drive module Mounter equipped with 15 nozzle direct drive head,
linear motor drive XY axis, do not stop a recognition,
Y axis optimization adjustment to achieve a high yield of 65000CPH.
Constructed from one mounting line and one board is mounted at the same time,
two boards with a board width of less than 216 mm can be produced simultaneously
The two heads before and after each loading line are continuously
suctioned and installed for high throughput
By matching the head module to the parts supply module, a device that conforms to
the production mode can be configured on any two of the two processing zones
By using gull-wing covers and securing the working area between the devices when
connecting, an excellent working environment is achieved
Front and rear equipped with a large touch panel monitor,
thereby enhancing the operating performance2. Mounting head module of the stress
According to production patterns for high-speed placement head,
multi-functional placement of the first free combination of configuration.
High-speed placement head through the replacement nozzle to
achieve a variety of parts 0402 ~ 44mm stress
Parts with a maximum of 55 mm, connectors with a maximum length of 100 × 26 mm,
and parts with a thickness up to 25.4 can be produced using the multi-purpose mounting head.3. Linear motor drives XY axes
Equipped with an intermeshing control device that can monitor two Y axes with each other,
a rigid dual drive is achieved, enabling high-speed, high-precision positioning.Through the use of linear motors, to simplify the structure, resulting in long-term maintenance-free
Each drive head can suck up to 15 suction nozzle, through the adsorption of 15 components,
reducing the number of XY axis reciprocation, enabling high productivityNozzle holder can be easily removed, you can replace the nozzle outside the placement machine
Through the XY axis synchronization control, high-intensity strobe flash and the establishment
of telecentric lens, to achieve the highest speed cameraA one-time video capture of 15 components was achieved
6. Each placement head is equipped with a laser sensor to check the number of components
(whether the erection, the level of absorption) for a full inspection, and the stable mounting
of a very small patch by feedback of the pickup height.7. Enables high-throughput substrate Y position adjustment
The Y position of the substrate can be adjusted to the optimum position according to the size
of the substrate and the number of mounting components between the front and rear axles.
This adjustment can improve the balance of the coordinated actions
of the front and rear axles to achieve high output.8. High intelligent feeding system
SIGMA G5 Main body Multi-section tray feeders that can be set anywhere
in the two processing zones.
Adopts placement head direct access, through the tray alternate function
and tray alternate function, even in the production can also supply tray.
