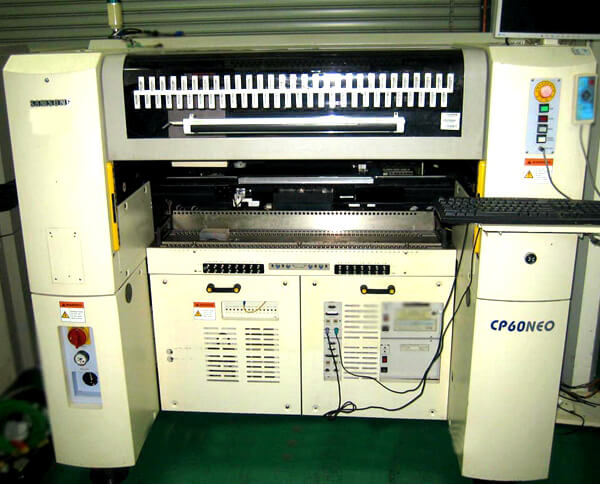

Samsung CP60 Pick and Place Machine

Samsung CP60 Pick and Place Machine

  • Mounting Speed: 30000 CPH
  • Dual rail transfer system
  • Weight: about 2100KG
  • Component Range: 0603 (0201) -24mm
  • Product description: Samsung CP60 Pick and Place Machine, Mounting Speed: 30000 CPH, Dual rail transfer system, Weight: about 2100KG, Component Range: 0603 (0201) -24mm

Samsung CP60 Pick and Place Machine

Products description

Faster 1 double cantilever - synchronous servo control system, two completely independently

driven cantilevers, 12 placement heads. 2. The Linear Scanning Optical System (LSO),
which has been successfully applied in CP60, improves the scanning speed and the ability
to handle micro-elements. 3. Dual rail transfer system, reducing the PCB transfer time.

More flexibility 1. Wide range of components, high-speed mounting from 0603 (0201) to

24mm IC, BGA and QFP.2. Effective feeder, can load a total of 116 8mm feeders to
reduce the refueling time, Improve equipment utilization.

Samsung CP60HP parameters
Alignment: Line Scan Optics
Mounting Speed: 0.1 sec / CHIP IPC9850 30000 CPH IC 0.6 SEC / QFP100
Mounting accuracy: ± 0.08 (3 sigma), 0603
Component Range: 0603 (0201) -24mm QFP, BGA Minimum

Pin Distance 0.65mm (Pin Pitch), 1.0mm (Ball Pitch)

PCB maximum size: 500 * 320 * 4.2
Number of feeders: 116 (8mm)
Dimensions: 1,900 * 1,870,1,470
Energy consumption: 3.4KVA
Weight: about 2100KG
Manufacturer: SAMSUNG
Model: CP-60 NEO
Equipment Details:
Pick and place systems Left to right flow Front fix (Qty 2) 8x2mm feeders


SMT Pick and Place Machine, Chip Mounter, SMT Mounter, PCB Mounter, SMT Surface Mounter, Chip Shooter. China pick and place machine, JUKI Pick and Place Machine, Pick and place machine Manufacturer, FUJI Pick and Place Machine, Siemens Pick and Place Machine, Samsung Pick and Place Machine, Panasonic Pick and Place Machine, Hitachi Pick and Place Machine, I Pulse Pick and Place Machine.

Flason Electronic Co, Ltd provide a full SMT Assembly Line solutions, including SMT reflow ovenWave Soldering MachinePick and Place Machinesolder paste printerPCB loaderPCB unloaderSMT AOI MachineSMT SPI MachineSMT X-Ray machineSMT assembly line equipment, smt spare parts etc, any kind SMT machines you may need, please contact us by: wechat whatsapp:+86 13691605420, Skype: flasonsmt, Email: [email protected]

1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$100,000 !
C. Best price & Best shipping & Best service !
