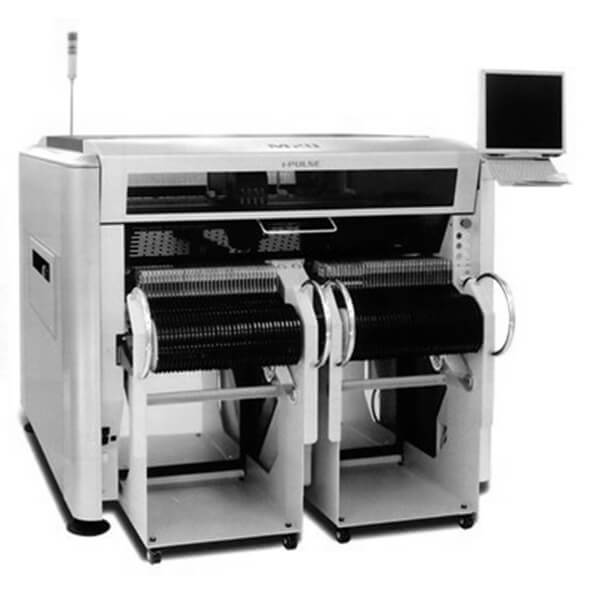

I-Pulse M20 Pick and Place Machine

I-Pulse M20 Pick and Place Machine

  • Feeder platform: 144 positions
  • PCB size: L 1200mm x W510mm
  • speed: 30,000CPH
  • Applicable components: 01005
  • Product description: I-Pulse M20 Pick and Place Machine, Feeder platform: 144 positions, PCB size: L 1200mm x W510mm, speed: 30,000CPH, Applicable components: 01005
  • INQUIRY

I-Pulse M20 Pick and Place Machine

Products description




feeder platform        144 positions
Maximum PCB size L 1200mm x W510mm
Applicable components 01005 (0402mm) ~120mm x 90mm (30mm height) BGA, CSP, oddform,
connectors etc
Optimum speed        30,000CPH
Accuracy        CHIP +/- 0.040mm IC +/- 0.025mm

If you're looking for the next generation in SMT Automation then look no further than the iPulse M20.
This feature packed machine comprises of many exciting features including its extra-large PCB handling that has never before seen in a standard footprint mounter. Extended component height along withoverall dimension and capability expands the range of placeable components, making the M20 themost flexible and capable machines ever offered from iPulse.

The M20 comes available in 4 and 6 head configurations to suit capacity and technology
demands. The range of feeder bank and optional tray handling configurations allows very
fast product change-over where a maximum of 144 feeders can be set on feeder banks or
changeable banks of 36 feeders. The 36 feeder can also be swapped with a 40 tray changer
if required.
Other features include Force Control Function, allows adjustment and measurement of the
downward force applied to components being placed from 5n to 60N. Placement verification
uses a downward looking camera where the need for a separate after placement is
eliminated for a separate after placement inspection machine.
