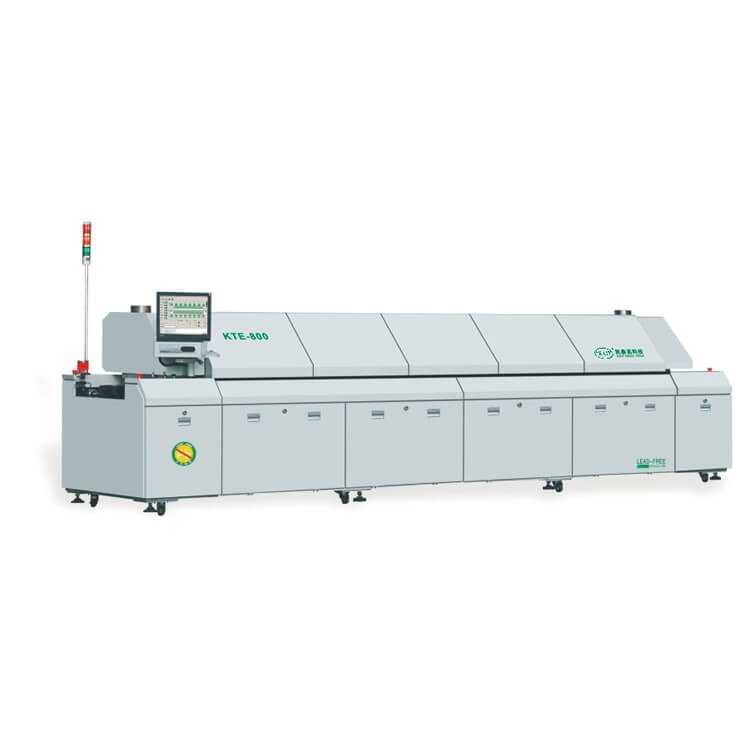

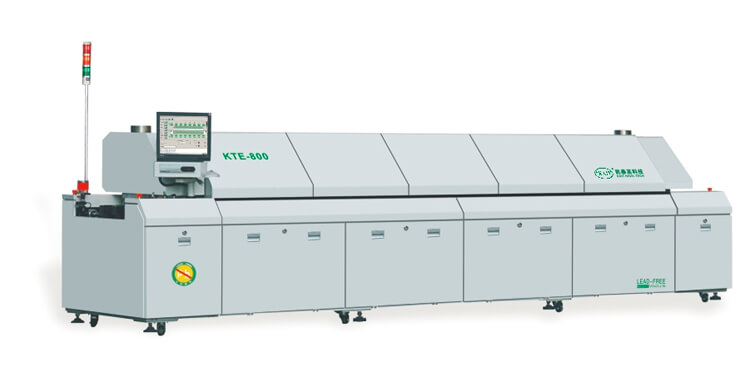

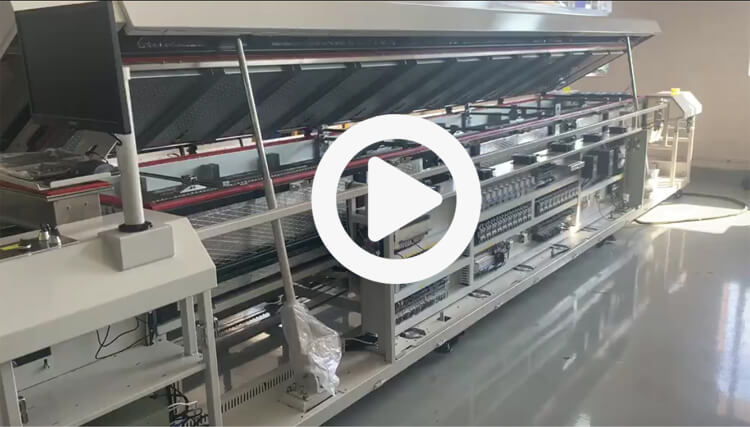

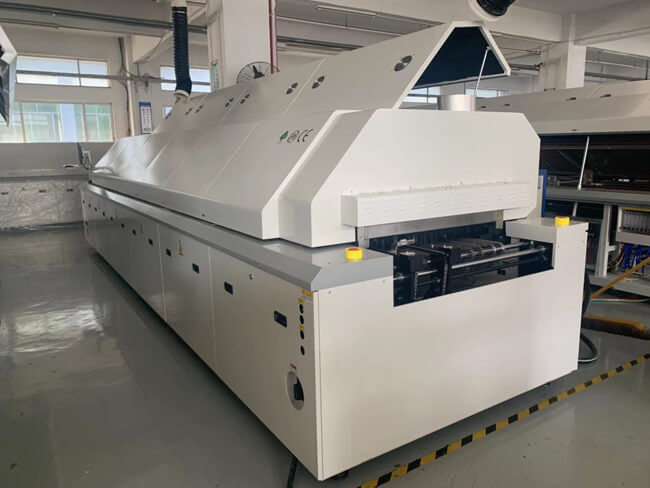

8 Zones Economical SMT Reflow Oven KTE 800

8 Zones Economical SMT Reflow Oven KTE 800

  • Heating zones quan:Top 8,bottom 8
  • Control method: Industrial computer
  • Dimension 5310*1360*1490mm
  • Weigth APPROX:2300KG
  • Product description: 8 Zones Economical SMT Reflow Oven KTE 800, Heating zones quan:Top 8,bottom 8, Control method: Industrial computer, Dimension 5310*1360*1490mm, Weigth APPROX:2300KG
  • INQUIRY

8 Zones Economical SMT Reflow Oven KTE 800

Products description


Features:
1. Totally meet various requirements for the lead free processing.
2. WindowsXP operation system, Chinese/English can be swtiched online.
3. Standard air oven, Patent air system, using hot air convection conduction heat faster, more efficient compensation.
4. PLC+PID closed loop control to achieve high prectise temperature control and repeatable profiles.
5. Dual temperature sensors and dual safety control, system shall cut off the power while abnormal alarm.
6. Modular design to get quick and simple maintenance so that reducing the maintenance time & cost.


Machine Specification

Model

KTE-800

Control

Industrial computer

Heating zones qty.

Top 8, bottom 8

Cooling zones qty.

Top 2

Heating zone length

3110mm

Rectifying plate

Galvanized plate

Weight

Apprx.:2300KG

Dimension

5310*1360*1490mm

Exhaust capacity

10/min×2

Color

Grey

Control system

Electricity supply

3P 380V/220V 50/60HZ

Temp. control range

Room temp.300℃

Total power

64KW

Temp. control accuracy

±1℃static state

Start power

30KW

Temp. control method

PID +SSR drive

Consumption power

10KW

PCB temperature deviation

±1.5℃

Speed control

Inverter adjust

Data save

All profiles can be saved

Warm up time

Apprx.30minute

Abnormal alarm

High, low temp. alarm

Conveying system

Rail structure

2 sectional rails

Rail fixed method

Front fix

Chain

Stuck-free type

Conveying height

900±20mm

PCB Max. width

50-400mm

Conveying method

Rail+ mesh+ chain

Component height

Top/bottom 25mm

Conveying speed

300-2000mm

Conveying direction

Left to right

Lubrication

Automatic

Cooling system

Cooling method

Forced air cooling

Heating features

Heating zones

Top 8,bottom 83110mmcan meet the need of the peak lead-free technique.

Cooling zones

After cool down by air, PCB temp. is ≤70℃ at the exit.

Warm up time

From the normal temp. to set temp, approximate 30 minutes.

Warm up sequence

Warm up from two side, save the power and time

Profile transfer time

15min

Heating zone temp. control accuracy

±1℃

PCB temp. deviation

±1.5℃

Empty to full load heat balance respond time

≤20 s

Heating zones separately close function

Every heating zone can be closed separately on computer. When the bottom heating zones are closed, the PCB two sides temp. different reaches max.(PCB of different material, thickness, size, the temp. difference value is different.)

Heating parts

Hot air motor

Import anti high temperature motor,RPM:2800rpmAdopts inverter to control, can adjust the speed of motor from 0to 3000, stepless. Motor warranty is 5 years.

Heater

The heater is specially made, with high efficiency and sensitivity, warranty time is 5 years.

Air lane structure

High efficient air lane, provides abundant air

Exhaust system

Forced exhaust device, ensure no escape of flux.

Transmission parts

Anti torque rail

High strength and hardened rail, is very durable and wear resistant.

Rail parallelism

±0.3mm

Chain stretch out length

Standard: 5mm, the chain is anti stuck type, solve the soldering problem of small PCB

C/V speed set min.unit range

0.01m/min, 0~2m/min

C/V speed deviation range

Computer close loop, within ±2%

Chain tension device

Automatic adjust by spring, avoid the chain stuck due to the heating.

Conveying motor

Taiwan motor

Chain lubrication

The lubrication is controlled by PC, lubrication cycle and time can be setthere are three modes: fine, standard, economical. There is also manual lubrication in software

Rail width-adjusting

Independent adjusting

Mesh

500mm stainless steel meshruns synchronized with chain

Machine structure

Frame

The frame is well soldered, firm and durable.

Door

Dismountable structure, provide wide space for maintenance.

Hood open method

Double electric cylinder to open the hood, with self-lock function, safe and reliable.

Cover open method

Self-made holder, easy to clean up

Electrical parts and control performance

Control system

Industrial PC

PLC+ModularPID, stable and reliable, with high repeat accuracy

Operation interface

Windows7 with Chinese& English shift easily.

Machine&operator safety

With creepage protector

Electric part

All electric parts are imported, very durable, ensure the machine runs stably.

Working mode

Three working mode: operation, edition and presentation, with on-line editing function

Real time monitor

Generate the operation record daily, if there happens some problems, the responsible operator will be found easily.

Temperature profile

Generate the profile for each zone daily, user can review and analyze. This function is not for PCB profile testing, just for inspecting when some problem happens in a certain zone.

Production database

Generate production statement for all kinds of PCB and statistics, printable.

Alarm list

The system saves all alarm information for user to review the alarm item and time.

Alarm system

The system enters cool down mode when the alarm is strict.

Profile test

With temp. profile testing function, can analyze according to the profile.

Abnormal alarm

1.PCB runs abnormally 2. Operation abnormal 3. Temperature abnormal 4. Conveyor speed abnormal  5. Hot air devices abnormal.

Flux recycle device

Standard configured. When use nitrogen, as it is closed recirculation, if the flux fog cannot be spread, it will pollute the PCB.

After-sales services

Warranty

2 years for the whole machine, 5 years for motors, heaters.

Out of warranty

Charge only purchase price for parts.

Service respond time

12 hours
