  • Wave Soldering Machine KTM-350

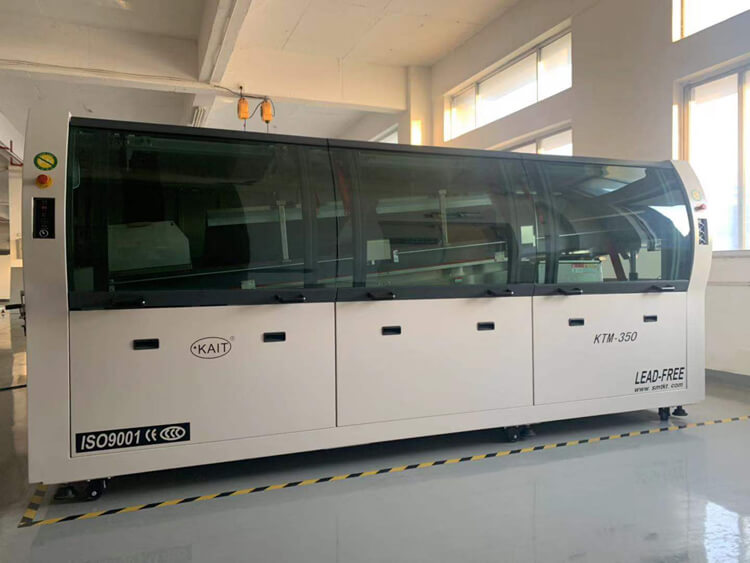

Wave Soldering Machine KTM-350

Wave Soldering Machine KTM-350

  • Preheating zone 4 zones
  • Solder pot capacity Approx.450kg
  • Weight Approx.1500kg
  • Dimension 4500*1600*1730
  • Product description: Wave Soldering Machine KTM-350, Preheating zone 4 zones, Solder pot capacity Approx.450kg, Weight Approx.1500kg, Dimension 4500*1600*1730
  • INQUIRY

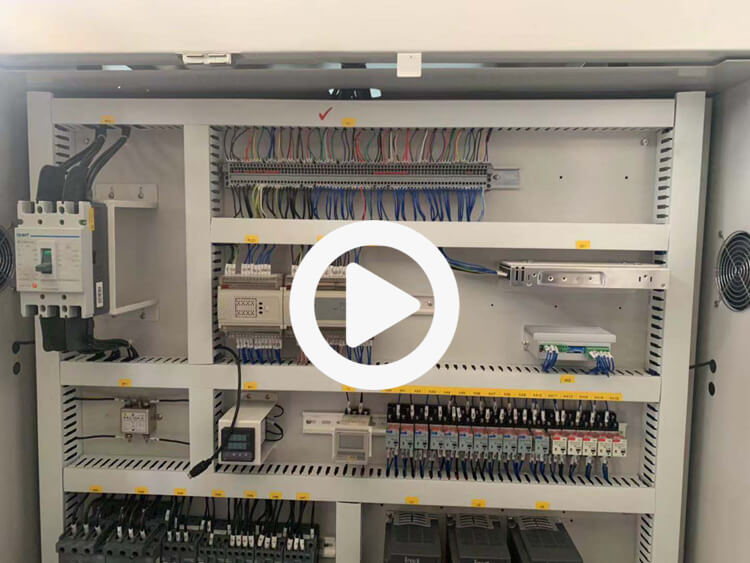

Wave Soldering Machine KTM-350

Products description



Machine Specification

Model

KTM-350

Solder pot type

4th adjustable

PCB width

Max.50~350mm

Heating technology

Matrix straight heating, heating efficiency up to 95%

PCB convey height

750±50mm

Solder pot temp.

Room temp.to 350℃accuracy±1-2℃

Conveyor speed

0-1800mmMin

Solder pot temp. accuracy

±1℃

Angle

3~7 degree

Finger types

FJ type/L type/ customized

Component height limit

Max.100mm

Solder bar adding way

Manually

Wave height range

0~18mm keep steady

Temp. control

P.I.D+SSR

Wave quantity

2

Machine control

PLC+PC

Preheating length

1800MM

Width adjust

Manually/motorized (option)

Preheating zone

4 zones

Flux adding way

Automatically

Conveyor direction

Left to right

Flux flow rate

10~100ml/min

Preheat power

20KW

Spray method

Step motor

Preheat temp.

Room temp.~250℃ (adjustable)

Flux recycle

Tray to collect

Heating model

Hot air

Electricity

3P 5 wires 380V/3P 220V

Solder bar type

Lead-free

Total power

Max.22kw

Solder pot power

14kw

Normal running power

Approx.3-5kw

Solder pot capacity

Approx.450kg

Air supply

4~7KG/CM2

Solder pot material

Cast iron

Dimension

4500*1600*1730

Weight

Approx.1500kg

Machine cover
Structure Streamline cover design, the frame is made of thick square tube, the cover is made of 2mm steel plate. There are totally 6 wheels to move the machine easily.
Front door structure Fully enclosed glass door, transparent,pneumatic holder to support, ensure the operating and repairing space.
Machine top Anti-explosion lamp
Surface treatment Painted with white color
Flux spraying
Spray nozzle Spray range:20~65mm,adjustable,nozzle height: 50~80mm adjustable,max. flow rate:100ml/min
Air circuit Acid and alkali resistant air pipe, the brand is SMC from Japan.
Nozzle moving system Step motor to drive, Mitsubishi PLC, with proximity switch and entrance sensor to control, according to the coming PCB’s speed and width, the spraying system can detect and starts to work.
Flux recycle system Tray to hold the waste water and flux, can be draw out easily, make maintenance very convenient.
Flux exhaust system Exhaust system:stainless steel mesh frame+ double layers filter,recycle the flux to maximum.
Isolated air curtain Air pressure type knife, blow the redundant flux into the recycling box, to avoid the flux to enter into the preheating zones, ensures the safety.
Spraying box structure Made of full stainless steel, easy to clean and repair. Anti-corrosion, very durable.
Preheating
Preheating zone quan. Preheating length is 1800mm, divided into 4 sections, supply abundant adjusting space, very good for big PCB and complicated PCB. Reduce the heat impact on PCB, improve the production efficiency.
Temp. control method Mitsubishi temp. collecting module, PID is very precise and stable.
Heating parts The heaters are imported from Taiwan, heat up very fast, with long life, small thermo lag; The heat is even in the zones.
Preheating power 20kw
Install mode The heating module adopts drawer design, easy to replace and repair, make the maintenance very convenient.
Transmission
Rail Made of aluminum, wear resistant and without distortion.
Rail parallelism Width adjusting accuracy less than 0.2mm
Width adjust Manually/motorized
C/V speed setting unit Min.1mm/min 0-1800mm/min
C/V speed variation range Electric closed-loop control, within 0-10mm/min
Conveying motor TCG motor from Taiwan,90w, with over-loaded protection function.
Solder pot
Low oxidization design High quality solder pot, the heat is very steady. Adopts liquid solder flow design, reduce the impact oxidization, especially for small PCB.
Economical running Reduce the power consumption
Moving method Motorized
Wave adjustable height 0-18mm
Wave motor TCG motor from Taiwan,adjust the wave height with frequency conversion.
Preheating parts Adopts the stainless steel heaters from Taiwan, with long life and power saving up to 40% daily.
Cooling
Cooling method Adopts high power centrifugal fan, reduce the air bubble and solder pad stripping
Automatic finger cleaning
Imported premium pump, can wash the fingers from both sides. Propyl alcohol to clean and can be recycled.
Control software
★Automatic alarm function for failure::thermocouple abnormal,temp. too high or too low;if preheating system or solder pot is abnormal, the heating stops.
★Preheating temp., solder pot temp., conveyor speed, spraying and cooling can be controlled separately.
★One week automatic power on/off setting (three times one day)
★The emergency stops are in front, rear of the machine, press them in case of any emergency.
