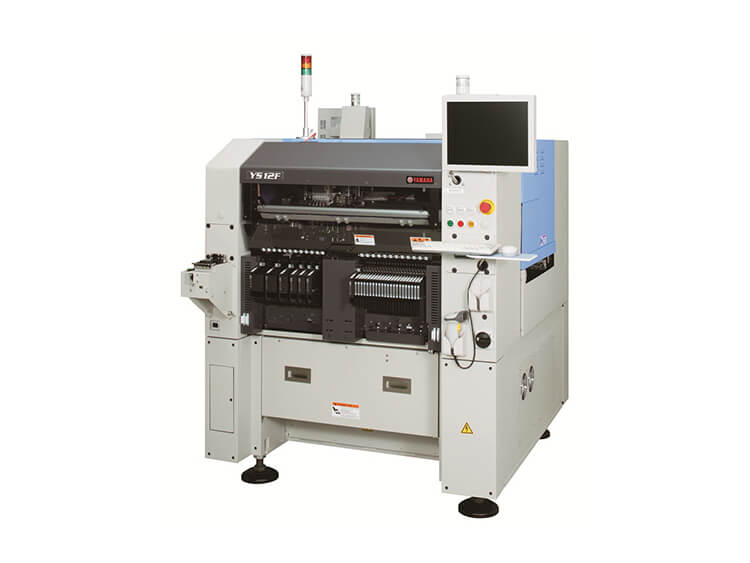

Yamaha YS12F Pick and Place Machine

Yamaha YS12F Pick and Place Machine

  • Applicable components: 0402 to 45x100mm
  • Mounting tact: 20,000CPH
  • Weight Approx. 1,370kg
  • dimension: L1,254 x W1,755 x H1,475mm
  • Product description: Yamaha YS12F Pick and Place Machine, Applicable components: 0402 to 45x100mm. Mounting tact: 20,000CPH, Weight Approx. 1,370kg , dimension: L1,254 x W1,755 x H1,475mm

Yamaha YS12F Pick and Place Machine

Products description

Applicable PCB: L510mm x W460mm to L50mm x W50mm
Mounting accuracy: Absolute accuracy(μ+3σ) +/-0.05mm/CHIP
Mounting tact: 20,000CPH(under our optimum condition)
Component supply: Tape reel, tray

Number of component types: Tape package components: 106 types(Max/8mm tape reel conversion)Tray

package conversion: 15 types(Max/JEDEC tray conversion)

Applicable components: 0402 to 45x100mm, including ball type electrode components *32x32mm or more

needs special nozzle set

Applicable height: 15mm
Power supply: 3-Phase AC 200/208/220/240/380/400/416 V +/-10%
Air supply source: 0.45MPa
External dimension: L1,254 x W1,755 x H1,475mm (when ATS15 mounted; not include the projection)
Weight Approx. 1,370kg (when ATS15 mounted)


SMT Pick and Place MachinePanasonic pick and place machineJUKI Pick and Place MachineHanwha Pick and Place MachineFUJI Pick and Place MachineSiemens Pick and Place MachineYamaha Pick and place machineSamsung Pick and Place MachineHitachi Pick and Place MachineI Pulse Pick and Place Machine.

Flason Electronic Co, Ltd provide a full SMT Assembly Line solutions, including SMT reflow oven, Wave Soldering Machine, Pick and Place Machine, solder paste printer, PCB loader, PCB unloader, SMT AOI Machine, SMT SPI Machine, SMT X-Ray machine, SMT assembly line equipment, smt spare parts etc, any kind SMT machines you may need, please contact us by: wechat whatsapp:+86 13691605420, Skype: flasonsmt, Email: [email protected]

1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$100,000 !
C. Best price & Best shipping & Best service !
