  • UV Laser Marking Machine for Glass and Ceramics LM-102

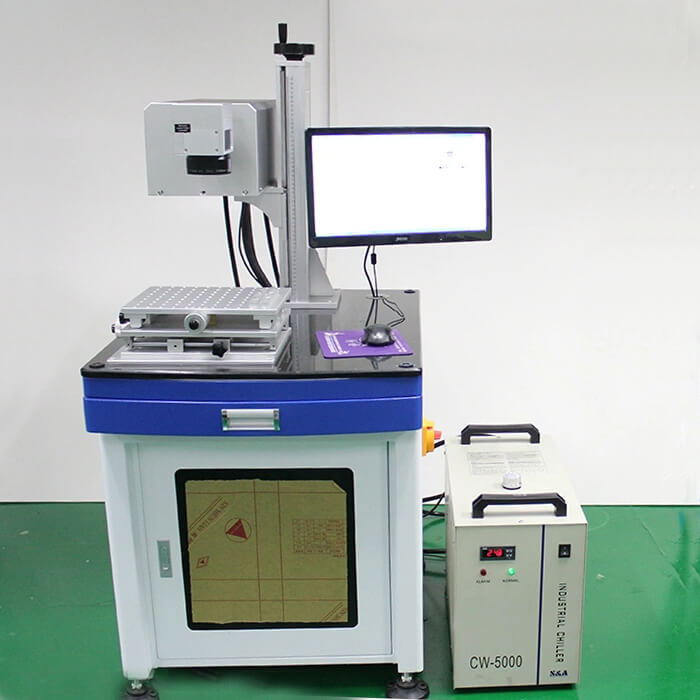

UV Laser Marking Machine for Glass and Ceramics LM-102

UV Laser Marking Machine for Glass and Ceramics LM-102

  • Power 3W/5W
  • Optical maser wavelength 355nm
  • Marking range 150mm×150mm
  • Laser module life 20000 h
  • Product description: UV Laser Marking Machine for Glass and Ceramics LM-102, Power 3W/5W, Optical maser wavelength 355nm, Marking range 150mm×150mm, Laser module life 20000 h
  • INQUIRY

UV Laser Marking Machine for Glass and Ceramics LM-102

Products description




LM-102 UV laser marking machine adopts ultraviolet laser and the development of 355nm, high beam quality, the spot is very small, can achieve ultra fine marking; High precision and fine spot ensure the result of marking is perfect; Playing standard process of non - contact, marking a permanent effect; High efficiency; Fast marking speed, stable performance, small volume, low power consumption, which is more suitable for the thermal radiation response of material processing; It can be matched with the production line, automatic feeding, automatic feeding; Also suitable for marking in the vast majority of metal and non metal materials.

LM-102 UV laser marking machine mainly used in ultra precision machining of the high-end market, 3C industry, automobile industry, medical equipment, electronic components, electrical products, IT industry, hardware products, precision instruments, gift accessories, high and low voltage electrical apparatus, cosmetics, medicines, bottles and other polymer materials surface video marking, effec
t fine, mark cleaning firm, superior ink printing and no pollution; Flexible PCB plate marking, scribing; Microporous silicon wafers, blind hole processing; LCD liquid crystal glass two-dimensional code marking, glassware surface drilling, surface coating of metal marking, plastic buttons, electronic components, gifts, com Materials, building materials etc.

Industry application
Widely used in integrated circuit chips, computer accessories, industrial bearings, clocks and watches, electronic and communication products, aerospace components, all kinds of auto parts, household appliances, hardware tools, dies, wire and cable, food packaging, jewelry, tobacco, and many fields such as military things graphics and text markup, mass production line work.

Power

3W/5W

Optical maser wavelength

355nm

Optical quality

M2<=1.3

Pulse stability

< 2%

Marking type

Dynamic/static marking

Marking range

150mm×150mm

Matching range

50mm×50mm~300mm×300mm

Minimum linewidth

0.01mm

Marking speed

12000mm/s

Repeated accuracy

±0.0025mm

Cooling type

Water

Operating ambient temperature

15ºC-20ºC

Power demand

220V/uniphase/50HZ/<10A

Laser module life

20000 h

Keywords:

SMT Peripheral EquipmentPCB loaderPCB unloaderPCB conveyorPCB cleanerNozzle cleanerPCB destacker loaderReflow Oven thermal profilerPCB NG/OK machineDIP insert lineSolder paste mixerSMT Stencil Cleaning machine.


Flason Electronic Co, Ltd provide a full SMT Assembly Line solutions, including SMT reflow oven, Wave Soldering Machine, Pick and Place Machine, solder paste printer, PCB loader, PCB unloader, SMT AOI Machine, SMT SPI Machine, SMT X-Ray machine, SMT assembly line equipment, smt spare parts etc, any kind SMT machines you may need, please contact us by: wechat whatsapp:+86 13691605420, Skype: flasonsmt, Email: [email protected]




FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$100,000 !
C. Best price & Best shipping & Best service !
