  • JUKI KE-2080 high speed Pick and Place Machine

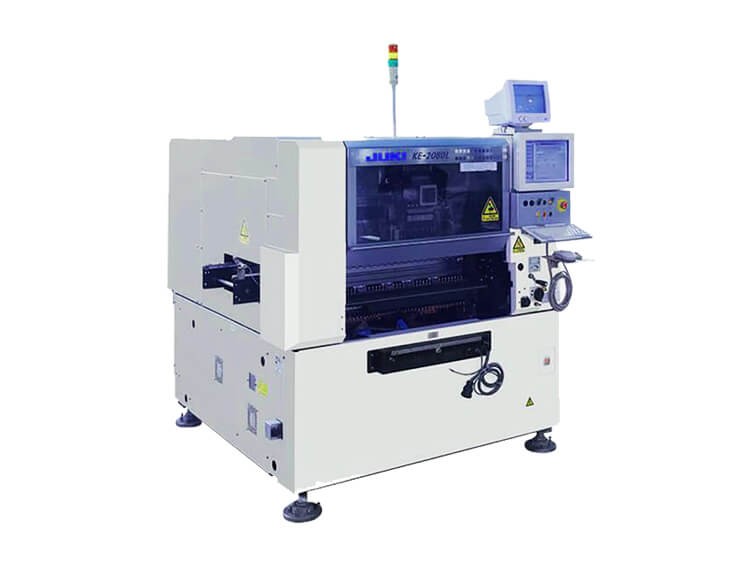

JUKI KE-2080 high speed Pick and Place Machine

JUKI KE-2080 high speed Pick and Place Machine

  • Applicable Components: 0402
  • Board size:330×250mm
  • Feeder inputs:80
  • placement capacity:16,000CPH
  • Product description: JUKI KE-2080 high speed Pick and Place Machine, Applicable Components: 0402, Board size:330×250mm, Feeder inputs:80, placement capacity:16,000CPH
  • INQUIRY

JUKI KE-2080 high speed Pick and Place Machine

Products description



The trend in the surface mount industry is towards a complete change to modular mounters, as opposed to traditional “turret” chip shooters. In future, modular systems will continue to increase their market share. In this situation, the new ultra-flexible High Speed Chip Shooter KE-2070 and High Speed Flexible Mounter KE-2080 machines will provide optimum performance for the demands of the production work place, allowing maximum productivity for a minimum investment and making it possible to build production lines that have high flexibility. And efficiency while being easy to use.

High Speed Chip Shooter KE-2080

16,000CPH: chip (laser centering / IPC 9850)
4,600CPH: IC (vision centering with optional MNVC)
One multi-nozzle laser head (6 nozzles)
From 0402 (01005) to 33.5mm square components
Vision centering system (optional, featuring bottom, side, and back lighting, all ball recognition)
High Speed Flexible Mounter KE-2080
15,400CPH: chip (laser centering / IPC9850)
1,850CPH: IC (vision centering / effective tact),
4,860CPH with MNVC option.
One multi-nozzle laser head (6 nozzles) plus one high resolution head (1 nozzle)
From 0402 (01005) to 74mm square components or 50×150mm
Vision centering system (featuring bottom, side, and back lighting, all ball recognition and split recognition)


Model name

chip mounter

Flexible mounter

KE-2070M

(Reference)KE-2050

KE-2080M

(Reference) KE-2060

Placement speed (chips)

16,000CPH

13,200CPH

15,400CPH

12,500CPH

Number of components that can be mounted (8mm tape conversion)

Max. 80 component types

Max. 80 component types

Max. 80 component types

Max. 80 component types

Component size

0402mm chip?33.5mm

0603mm chip?20mm

0402mm chip?50mm

0603mm chip?50mm

Mass (approximately)

1,530kg

1,400kg

1,540kg

1,410kg

Equipment dimensions (Main unit only)

Width

1,300mm

1,300mm

1,300mm

1,300mm

Depth

1,393mm

1,393mm

1,393mm

1,393mm

Height

1,455mm

1,440mm

1,455mm

1,440mm
