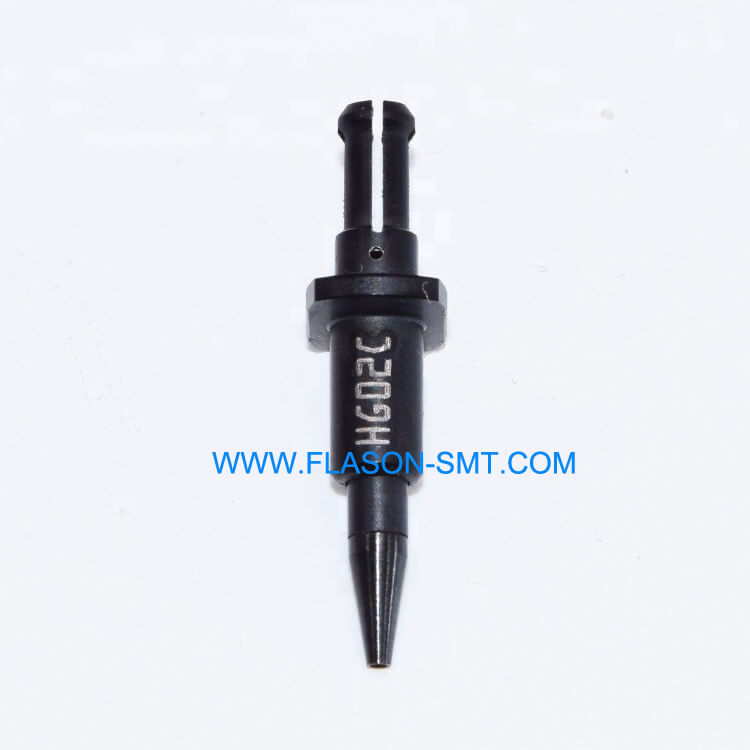

Hitachi Sigma G4 and G5 HG02C

Products description


Hitachi GXH-1,  GXH-3 Nozzles
Part Number              Description
630 128 4842 (#101)        HA01 0.7x0.4/ø0.25 (for 0603)
630 132 2322 (#111)        PV01 1.1x0.6/ø0.38 (for 1005)
630 132 9857 (#112)        PV02 1.7x0.9/ø0.65 (for 1608)
630 129 2892 (#104)        HV03 ø1.3/ø0.9 (for 2012)
630 129 2922               HA04 ø1.8/ø1.2 (for 3216)
630 129 2939 (#108)        HA05 ø3.0/ø2.0
630 129 2946            HA09 ø6.0/ø4.5
630 152 8267            HV31 ø0.7x0.4/ø0.2
630 152 8472            HV51 ø0.6/ø0.4
630 158 9084            HV81 ø1.7x0.9/ø0.7
630 158 6571            HG31 ø0.7x0.4/ø0.2
630 159 9632            HG51 ø0.6/ø0.4
630 161 3501            HG81 ø1.7x0.9/ø0.7
630 128 4842            HA10 ø0.7x0.4/ø0.2
630 129 2878            HV01 ø0.6/ø0.4
630 129 2885            HV02 ø0.9/ø0.7
630 133 5407            PA05 ø2.6/ø2.0
630 129 2908            HB03 Melf ø1.3/ø0.9
630 129 2915            HB04 Melf ø1.8/ø1.1
630 129 8214            VF01 ø8.0/ø3.0
630 129 8252            VF02 ø12.0/ø8.0
630 130 0283            VG35 8.0x2.2
630 130 0238            VG51
630 130 7831            VG52 7.0x1.4
630 130 0245            VT32 ø12.0x1.9
630 130 8692            VT69 ø8.6

Hitachi Sigma-G4, Sigma-G5 Nozzles
Part Number            Description
HV32C                HV32C
HV52C                HV52C
HV82C                HV82C
HV21C                HV21C
HG32C                HG32C
HG52C                HG52C
HG82C                HG82C
HV13C                HV13C
HV14C                HV14C
HV15C                HV15C
HB03C                HB03C
HB04C                HB04C

Brand Machine Model Specification Material of nozzle tip
tem Item Name Component Tip Material
PV01 Hitachi GXH-1/3 Nozzle 1005 Ceramic
PV02 Hitachi GXH-1/3 Nozzle 1608 Ceramic
HV03 Hitachi GXH-1/3 Nozzle 2012 Ceramic
HA05 Hitachi GXH-1/3 Nozzle N/A N/A
HA09 Hitachi GXH-1/3 Nozzle SOP, QFP, PLCC N/A
HA10 Hitachi GXH-1/3 Nozzle 603 Ceramic
FF01 Hitachi GXH-1/3 Nozzle N/A N/A
FF02 Hitachi GXH-1/3 Nozzle N/A N/A
FA05 Hitachi GXH-1/3 Nozzle N/A N/A
FA06 Hitachi GXH-1/3 Nozzle N/A N/A
WF32 Hitachi GXH-1/3 Nozzle N/A N/A
WF300 Hitachi GXH-1/3 Nozzle N/A N/A
WT10 Hitachi GXH-1/3 Nozzle N/A N/A
HV31 Hitachi GXH-1/3 Nozzle 603 Diamond
HV51 Hitachi GXH-1/3 Nozzle 1005~2012 Diamond
HV81 Hitachi GXH-1/3 Nozzle 1068~2012 Diamond
HB03 Hitachi GXH-1/3 Nozzle Melf N/A
HB04 Hitachi GXH-1/3 Nozzle Melf N/A
VA06 Hitachi GXH-1/3 Nozzle N/A N/A
VG35 Hitachi GXH-1/3 Nozzle N/A N/A
VF07 Hitachi GXH-1/3 Nozzle N/A N/A

if there is no matching models,please contact me directly.

1.Short lead time;

2.Quality guaranteed.

3.All size and model available.

Flason SMT are long term and stable supplier of above stated SMT parts.

Flason SMT will Provide high quality and low price goods and perfect follow-up service.
