  • Ersa ETS 330 -Mini Wave Soldering Machine

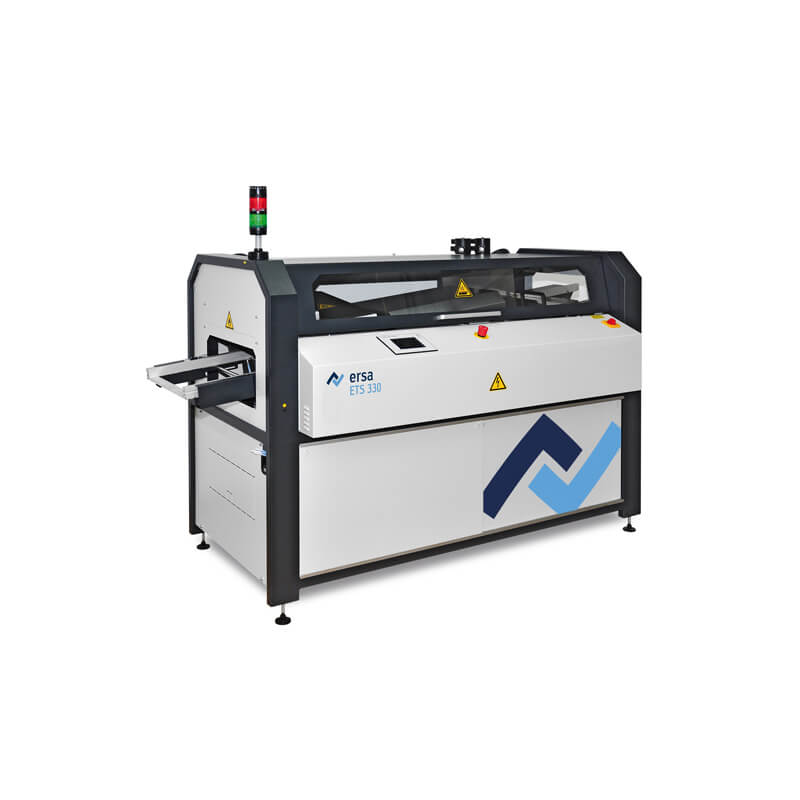

Ersa ETS 330 -Mini Wave Soldering Machine

Ersa ETS 330 -Mini Wave Soldering Machine

  • PCB width : 330 mm
  • solder pot: 360 to 410 kg
  • Dimension: L2,000mmxW890mmxH1,400 mm
  • Length of preheat: approx. 900 mm
  • Product description: Ersa ETS 330 -Mini Wave Soldering Machine, PCB width : 330 mm, solder pot: 360 to 410 kg, Dimension: L2,000mmxW890mmxH1,400 mm, Length of preheat: approx. 900 mm
  • INQUIRY

Ersa ETS 330 -Mini Wave Soldering Machine

Products description



A compact wave soldering system for the industrial manufacture of small to medium production volumes Inline-capable dual wave soldering systems with 330 mm maximum working width and code operation

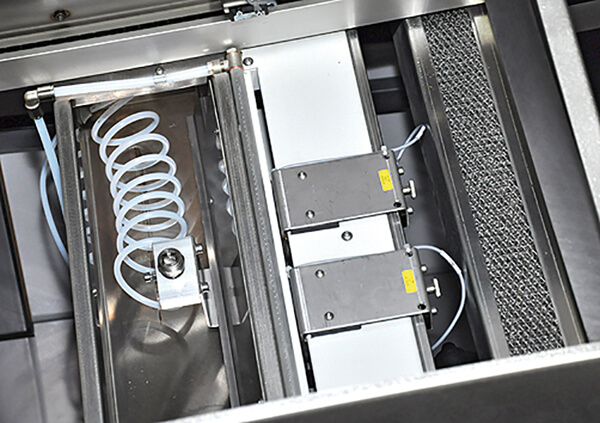

Precise and economic flux deposition on account of a freely defined spray area

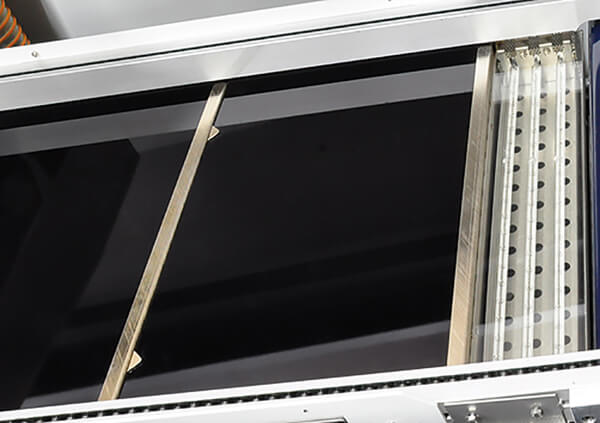

Powerful preheat with 900 mm length protected by a glass ceramic (ceran glass) cover
Additional and programmable length of stay over the preheater for assemblies requiring more heat

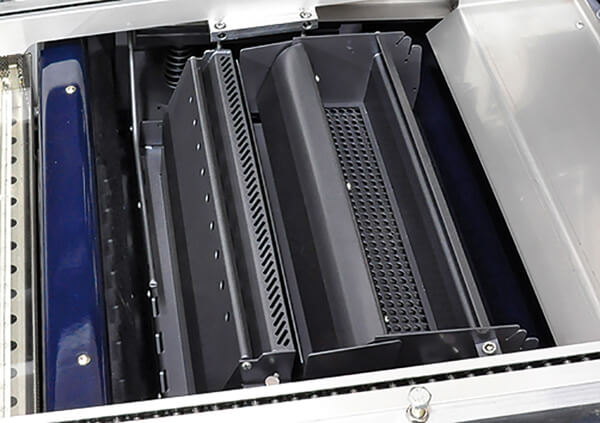

Ideal combination of solder nozzles for all applications
Robust conveyor system with forced guidance of the pallet
Modern controls with a graphic user interface and touch-screen
Automatic heat-up with weekly time clock
Large solder program library with up to 199 different programs

Ersa ETS 330 -Mini Wave Soldering Machine

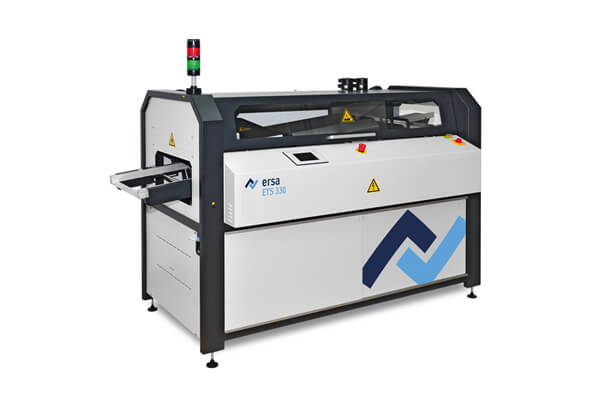

The Ersa ETS 330 is a microprocessor controlled Wave Soldering System to process boards populated with SMD and through-hole components up to a board width of 330 mm. The ETS 330 is ideal for the use with low-solid fluxes. The ability to store 199 programs, the clear text entry of all process relevant parameters and the self-monitoring function of the system ensure a high degree of repeatability.


Dimensions
Length approx. 2,000 mm
Width approx. 890 mm
Height approx. 1,400 mm
Conveyor systems
Pallet conveyor
Maximum conveyor speed: 2,5 m/min
Maximum working width: up to 330 mm
Media supply
Compressed air
Electrical power
Exhaust
Preheating
Heat transfer via medium and short wave radiation
Length of preheat: approx. 900 mm
Solder module
Depending on the alloy used, solder content is between 360 to 410 kg

Options:
FOCUS spray fluxer
Short wave emitters
Dual wave solder module with pre-solder nozzle (SMD nozzle)
Prolongation of preheat through dwelling oft he PCB over the preheater
Solder level monitoring
Exhaust monitoring
Touch-operation terminal
Weekly time clock
Cooling unit after soldering
Infeed and exit extensions
