  • SMT Stencil CLEANING MACHINE 5600
SMT Stencil CLEANING MACHINE 5600

SMT Stencil CLEANING MACHINE 5600

  • Demensions:600 x 1000 x 1600mm
  • PCB width:50-400mm
  • PCB Length:Max 460mm
  • Pitches:10,20,30mm
  • Product description: SMT Stencil CLEANING MACHINE 5600, Demensions:600 x 1000 x 1600mm, PCB width:50-400mm, PCB Length:Max 460mm, Pitches:10,20,30mm
  • INQUIRY

SMT Stencil CLEANING MACHINE 5600

Product Introduce:

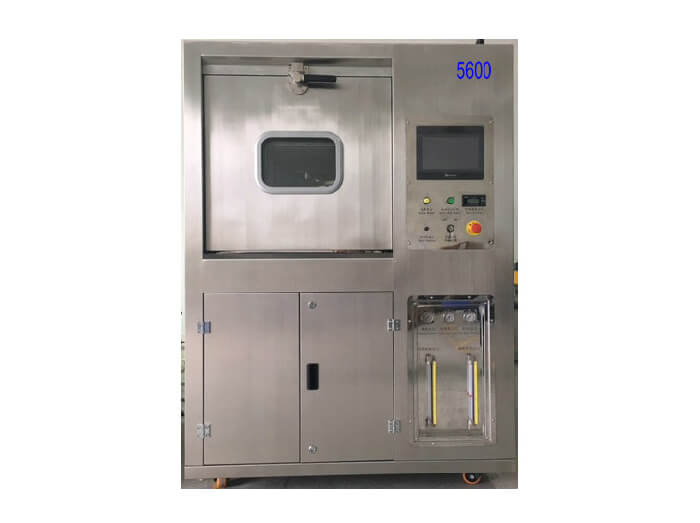

SMT Stencil CLEANING MACHINE 5600


FLASON-5600 off-line automatic SMT Stencil washing machine is an energy-saving environmental protection, bulk SMT Stencil cleaning integrated high-end SMT Stencil cleaning machine, can automatically complete the cleaning, rinsing, drying The SMT Stencil, widely usedin SMT production field.
Mainly used for aviation, aerospace, medical, new energy, automotive electronics and other high-end products such as high-end products, small and medium-sized PCBA board cleaning, can effectively clean the SMT / THT PCBA welding surface residual rosin flux, water-soluble flux , No-clean flux / solder paste and other organic and inorganic pollutants

Features:

1, the whole process of visualization: the cleaning room with a visual window, cleaning room with lighting, cleaning process at a glance
2, automatic cleaning mode: in a cleaning room with a spray to complete the cleaning, rinsing, drying full cleaning process volume occupied area is small, compact structure;
3, the most scientific nozzle design: the use of left and right incremental distribution --- to enhance cleaning efficiency,The upper and lower dislocation distribution - completely solve the cleaning blind area;
4, the nozzle pressure adjustable design: to solve the small size of the PCBA in the high pressure spray under the conditions of the collision, splash problem;
5, the standard dilution tank heating system: greatly improve the cleaning efficiency. Shorten the cleaning time;
6, a comprehensive cleaning system: for SMT; THT PCBA after welding the surface of the residual rosin, water-soluble flux, no-clean flux / solder paste and other organic and inorganic pollutants for thorough and effective cleaning;

7, convenient cleaning agent to add: can be manually added, but also by setting the ratio (5% to 25%) automatically with DI water and chemical solution;
8, dedicated spray tank and auxiliary heating system: spray bath is cleaning and rinsing process to be stored in the work of the cleaning plate to the tank. Cleaning process, the solvent from the dilution tank into the spray tank and continuous heating, pressurized by the high-pressure pump spray from the spray, followed by the use of circular filtration; rinse process, the spray tank is stored in deionized water, and then Pressurized by the high-pressure pump from the nozzle after the rinse water can be heated as needed;
9, lower operating costs: built-in filter device can be used to achieve the use of solvent, reducing the amount of solvent, at the end of the use of compressed air blowing method: recovery of the pipeline and the pump residual liquid, can effectively save 50%
10, the concentration compensation: dilution of the liquid after repeated use of reduced concentration, affecting the cleaning effect and cleaning efficiency, but not dirty enough, waste and waste, concentration compensation can improve the effective use of liquid, add the amount of adjustable.

Specifications:

Cleaning area size

610mm(L)*560mm(W)*160mm(H) 2layer

Cleaning area size Concentration tank capacity

40L

Dilution tank capacity

60L

Spray tank capacity

18L

Spray tank heater power:

6KW

Cleaning time

0~99 Minutes(adjustable)

Cleaning temperature (liquid)

Room temperature -75 degrees / (adjustable)

Rinse time

1 minute / time (1-59 times / adjustable)

Rinse temperature (DI water)

Room temp-75 /(adjustable

Drying time

0 to 99 minutes / (adjustable)

Resistivity meter monitoring range

0~18MΩ

Solvent tank heater power:

9KW


Drying Temperature:

Normal Temp--99℃ /(Adjuistable

Drying Heater/KW

6KW

Spray Pressure

30PSI - 90PSI/(adjustable

Chemical liquid level filter

0.22μm (filter microparticles: solder paste, rosin, flux and contaminants)

DI water FIlter

0.22μm (filter microparticles: solder paste, rosin, flux and contaminants)

water inlet

1 inch fast junction interface

Water outlet:

1 inch fast junction interface

Chemical Inlet:

1 inch fast junction interface

Real - time pressure gauge

3PCS (nozzle / DI water / waste liquid)

Horizontal spray pump

5.5KW

Outlet size

Φ100W)×30mm(H)

Power source

AC380V 50HZ 65A/0.45MPa~0.7MPa

Weight:

~400Kg

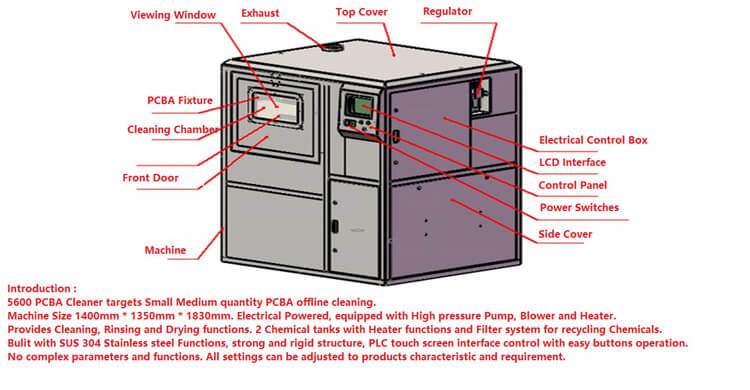

Machine Dimension:

1400mm(L)×1350mm(W)× 1830mm(H)

The Improvement of the Third Generation of New PCBA Washing Machine

1. Cleaning room rotation axis: the cleaning chamber to change the structure and material, turn off the industry before the PCBA washing machine rotary shaft easy to wear a common problem, every 6 to 12 months to replace the defect, the new rotary shaft mechanism without replacement.
2. Cleaning room, middle and lower spray bar pressure monitoring: cleaning room, the middle and the next three spray bar pressure display and monitoring, can be independently adjusted, corresponding to the majority of customer pressure control before the improvement requirements. Cleaning basket up and down 2 layers can be placed different PCBA, adjustable spray bar pressure to correspond. When the 2-layer cleaning basket is only placed on a layer of PCBA cleaning, you can also close one of the spray bar.
3. Software improvement: more powerful, especially the machine alarm and error failure instructions that allow customers to use the process can be based on instructions to troubleshoot.
4. Shape and size: Optimize the appearance of the machine and the key arrangement, more beautiful. Smaller footprint, less space: 1300x1200x1850mm (LxWxH).
5. Electrical configuration: According to the domestic manufacturers and export requirements matching:
All the electrical components used: Mitsubishi, Schneider, CKD, Omron and other well-known brands.

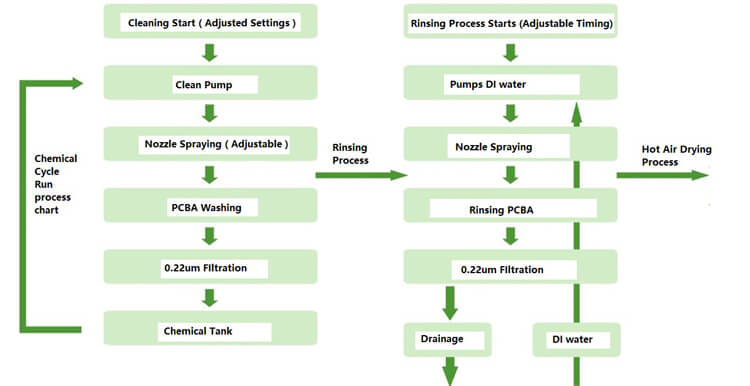

Operation Process:
