  • L15 SMT Stencil Printer

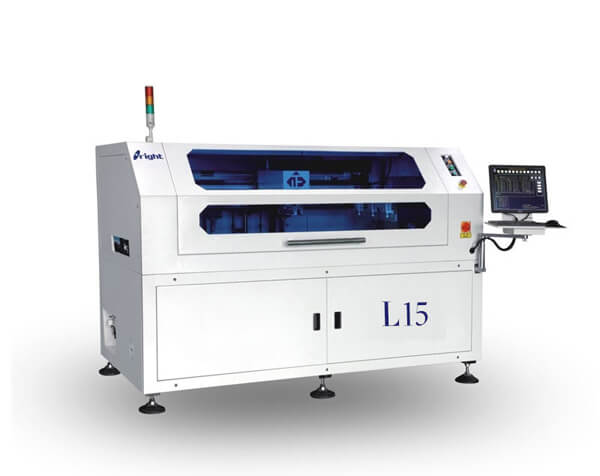

L15 SMT Stencil Printer

L15 SMT Stencil Printer

  • PCB Max Size 1500X350mm
  • Cycle Time <12s
  • size: 2500(L)X1200(W)X1500(H)mm
  • Weight:1800Kg
  • Product description: L15 SMT Stencil Printer Fully Automatic, PCB Max Size 1500X350mm, Cycle Time <12s, size: 2500(L)X1200(W)X1500(H)mm, Weight:1800Kg
  • INQUIRY

L15 SMT Stencil Printer

Products description


L15 SMT Stencil Printer

L15 SMT Stencil Printer Fully Automatic-Good Price! Good Quality! Good Service!

Specification :
A Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size:50mm x 50mm ~1500mm x 350mm;
PCB thickness: 0.4mm ~ 6mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.

1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;
New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;
2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure
for a little while can back again. According to the product flexible use
3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.
4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy
5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;
6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;
Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Machine specification parameters

Item

Model
L15

Screen Frames

Min Size

1100X300mm

Max Size

1800X750mm

Thickness

25~40mm

PCB Min Size

80X50mm

PCB Max Size

1500X350mm

PCB Thickness

0.4~6mm

PCB Warpage

1%

Transport Height

900±40mm

Transport Direction

Left-Right;Right-Left;Left-Left;Right-Right

Transport Speed

Max 1500mm/S Programmable

Board Location
PCBpositioning

Support System

Magnetic Pin/Up-down table adjusted/supportblock
by hand

Clamping System

Elastic side clamp / Z oriented sheeting



Squeegee Speed

6~200mm/sec

Squeegee Pressure

0~15Kg

Squeegee Angle

60°/55°/45°

Squeegee Type

Stainless steel(Standard), plastic

Stencil Separation Speed

0.1~20mm/sec Programmable

Cleaning System

DryWetVacuum (Programmable)

Table Adjustment ranges

X:±10mm;Y:±10mm;θ:±2°

Machine


Repeat Position Accuracy

±0.015mm

Printing Accuracy

±0.03mm


Cycle Time

<12s (Exclude Printing & Cleaning)

Product Changeover


<5Min


Air Required

4.5~6Kg/cm2

Power Input

AC:220±10%,50/60HZ 1Φ 3KW

Control Method

PC Control

Machine Dimensions

2500(L)X1200(W)X1500(H)mm

Machine Weight

Approx:1800Kg
