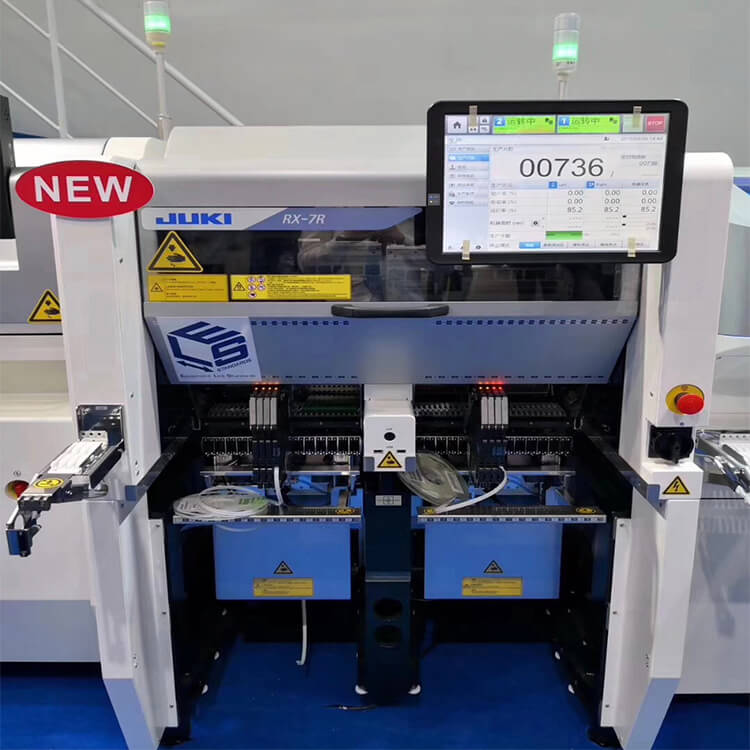

JUKI RX-7R Pick and Place Machine

JUKI RX-7R Pick and Place Machine

  • Applicable Components: 03015 chip ~ 25mm square element
  • Board size:510mm×450mm
  • Feeder inputs:max 76
  • placement capacity:75,000CPH
  • Product description: JUKI RX-7R Pick and Place Machine,Applicable Components: 03015 chip ~ 25mm square element,Board size:50 X 50 ~ 510mm×450mm, Feeder inputs:max 76,placement capacity:75,000CPH
  • INQUIRY

JUKI RX-7R Modular Pick and Place Machine

Product Description:

Component placement speed (optimal conditions): Chip components 75,000 CPH
Element size: 03015 chip ~ 25mm square element
P16 Rotary head enables high-speed, high-density placement of extremely small components
P8 placement head enables high-speed, high-precision placement of small and medium-sized general-purpose components
Space-saving design with a width of 998mm
Supports dual-track production
By combining the placement head, the optimal production line can be constructed according to the production variety.
High production performance achieved by the unique planetary placement head and parallel dual placement head structure
Compatible with small IC components with 03015 chip to 25mm

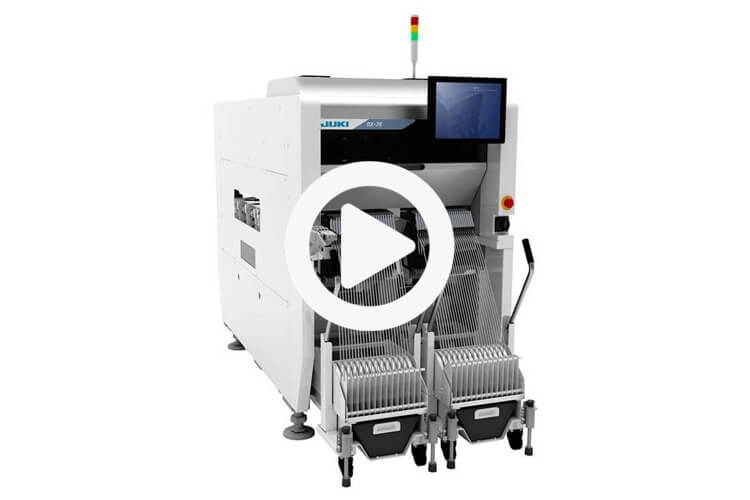

High -Speed Compact Modular Mounter RX-7R
(P16S×P16S head) (P16S×P8 head) (P8×P8 head)
Board size Single lane conveyer 50×50~510mm×450mm
Single lane conveyer
Single lane mode
50×50~510mm×450mm
Single lane conveyer
Dual lane mode
50×50~510mm×250mm
Component height 3mm 3mm(P16S head) 10.5mm
10.5mm(P8 head)
Component size 03015~5mm 03015~5mm(P16S head) 0603~25mm
0603~25mm(P8 head)
Placement speed(Optimum) Chip 75,000 CPH 54,900 CPH 34,800 CPH
IC - 6,400 CPH 12,800 CPH
Placement accuracy Chip ±0.04mm(Cpk≥1)
IC - ±0.04mm
feeder capacity Up to 56
Power supply 3 phase AC200V,220V-430V
Apparent power 2.3kVA
Operating air pressure 0.5±0.05MPa
Air consumption (standard) 20L/ANR(during normal operation)
Machine dimensions (W x D x H) 998×1,895×1,530mm 998×1,895×1,530mm
Mass (approximately) about 1,820kg
